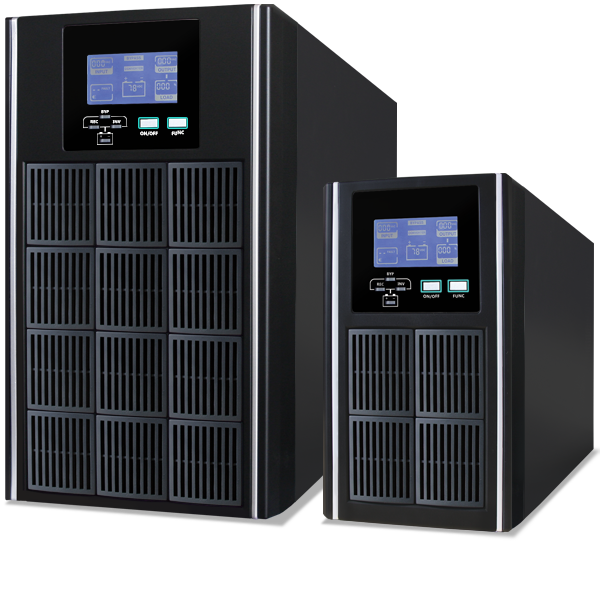

ZY120 UPS
ZY120 1-20 kVA, new on line double conversion UPS single and three phase input
UPS for small and medium-sized computer systems. ZY120 is a stronger double conversion UPS designed with coated internal PCBs
Online double conversion UPS for small and medium-sized computer
Stronger double conversion uninterruptible power supply for small and medium-sized computer systems.
- Single phase/single phase UPS from 1kVA to 20kVA, on line double conversion,
- Three phase/three phase UPS 10kVA and 20kVA on line double conversion.
Perfect sine wave output, IGBT inverter with PWM high frequency modulation to reduce noise, digital control with DSP.
Output factor 0,9 for all range permit to have available more active power.
Input rectifier with IGBT technology with power factor control guarantee input PF≥0,99 and very low imput current distortion.
Units from 6kVA to 20kVA can work in parallel up to 4 units.
Long autonomy can be available with KS version.
UPS designed with coated internal PCBS that allow installing this UPS in several application and environment.
- Coated PCBS inside
- Output PF 0,9
- DSP control with microprocessor
- PWM Technology with IGBT
- Complete LCD display easy to read and use
- Wide Input Voltage Range
- Standard communication interfaces: RS232 Smart and Smart USB
- Intelligent slot interface
- for AS400. Standard in 6-20kVA, option for 1-3kVA
- SNMP Card (option)
- Very user friendly setting software, with several setting available
- Cold Start Function
- Remote EPO
- Scheduled and manual battery test available
- Powerful charger for longer backup time
- Manual bypass switch
- Parallel configurations (6÷20 kVA)
