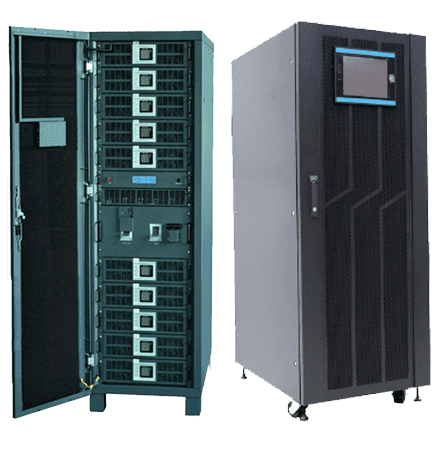

Modulera

3 Phase In - 3 Phase Out / 20 800 kVA

• Hot Swappable Decentralized Parallel Architecture
• DSP (Digital Signal Processor) Controlled Technology
• Modular N+X Parallel Redundancy
• Plug & Play Type Hot Swappable Power Modules
• Cold Start Function
• Parallel connection availability of UPS Frames up to 4pcs
• Wide Input Voltage Window (208Vac ~ 478Vac)
• Wide input frequency range (40Hz – 70Hz)
• High Overall Efficiency (up to 94%)
• Increased Output Power Factor (PF: 0.9)
• Unity Input Power Factor (PF: ≥ 0.99)
• Low Input Total Harmonic Distortion Level (THDi down to 3 %)
• Fit into standard 19” Rack Cabinet
• Touchscreen LCD display for user’s friendly operation
• EPO (Emergency Power Off)
• Smart Fan Speed Control
• Programmable Battery Voltage (32/ 34 / 36 / 38 / 40 blocks of 12V Batteries)
• Three Level Battery Charge system with smart charge current adjustment
• Powerful charger built in each Modular UPS Power Module
• Equip with Maintenance Bypass Switch for easy maintenance
• RS232 & 485 Ports as standard communication
• Megatec/Mod Bus protocol supported
• Optional Communication Interfaces (SNMP Card or
• DRY contact board)
