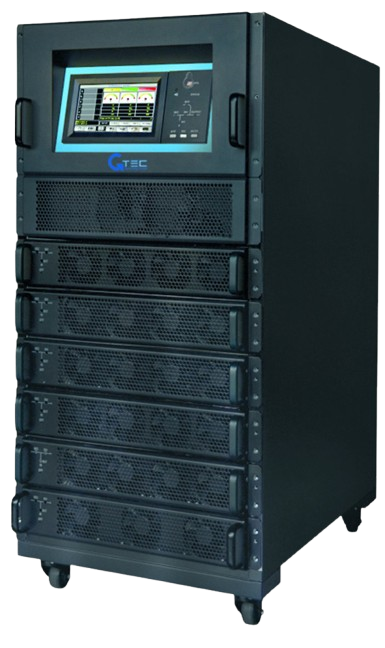

MiniMUST for Data Center
MiniMUST the most flexible and reliable choice for Data Center and critical load
Optimal protection for rackmount applications up to 90kVA/ 90kW
MiniMUST is the perfect solution for critical applications. A concentrate of the latest technology. Power modules 2U/19″ 10kVA and 15kVA with output power factor 1.
Greater than 95% efficiency.
Available in 3 versions:
- Rack 20kVA with 2 modules of 10kVA,
- Rack 40kVA with 4 modules of 10kVA,
- Rack 60-90kVA with 6 moduli of 10kVA or 15kVA. (only 3/3)
It can be installed as a standalone or as a rack of 19 “cabinets. Total control of the system parameters and modules thanks to a powerful control to DSP. The parameters are easily available and the system can be set directly from the full colored touch screen 7”. Suitable to all types of power supply because it comes in setup 3/3, 3/1 or 1/1 up to 40kVA.
The smart parallel management ensures maximum efficiency at all load levels, turning off the modules are not strictly necessary to supply the load while ensuring the redundancy level set.
The smart service management, monitors all critical UPS parameters, monitoring the operating time of the fans, capacitors and the operating time in battery. This allows you to manage the preventive maintenance of the system.
Technology Rectifier and inverter on IGBT technology
Efficiency Up to 95% in online mode
Battery Total control of battery parameter with reverse polarity protection
Application Standalone and standard rack 19”
Installation Connectable in 3/3, 3/1 and 1/1 up to 40kVA
Environment Suitable for harsh environments thanks to total tropicalized cards.
Interface RS232, RS485 and programmable dry contact in standard
